Cooling Glass Wine Cellars: 5 Design Mistakes to Avoid with Panthaire APEX
Sunday, August 24, 2025
0000 800 400.jpg)
Cooling Glass Wine Cellars: 5 Design Mistakes to Avoid with Panthaire APEXDiscover the 5 most common mistakes when cooling a glass wine cellar and how Panthaire APEX 3500, 5000, and 7000 ducted systems deliver silent, precise temperature and humidity control for showcase collections.
IntroductionGlass-enclosed wine cellars have become a symbol of modern design and sophistication. However, cooling a glass wine room is far more complex than conditioning a traditional insulated cellar. Glass has a significantly lower R-value (~R-2) than an insulated wall (~R-20), which greatly increases thermal loads. Without careful planning — insulation, vapor barrier, BTU sizing, and controlled airflow — your wines risk exposure to temperature swings and excess humidity.APEX Panthaire systems, designed and optimized for glass wine rooms, feature:
Standard glazing allows significant heat gain, especially with direct sunlight or strong internal lighting.Consequences:
A glass wine room can require 2 to 4 times more BTUs than a traditional insulated cellar.Recommended solutions:
Warm air infiltration leads to condensation inside the cellar.Recommended solutions:
Glass cellars can develop hot spots at the top and lack proper air turnover.Recommended solutions:
Insufficient access complicates maintenance and increases service costs.Recommended solutions:
Ideal temperature? 54–57 °F (12–14 °C) year-round.
DIY vapor barrier? Professional installation is recommended.
Maintenance frequency? Annually, with filter, coil, and drain pan service.ConclusionTo ensure thermal and humidity stability in your high-end glass wine cellar, adopt a comprehensive approach: performance glazing, precisely sized APEX Panthaire system, professionally installed vapor barrier, balanced airflow, and easy maintenance access.The APEX 3500, 5000, and 7000 are engineered to meet these challenges, delivering silent cooling, an invisible design, and lasting performance.

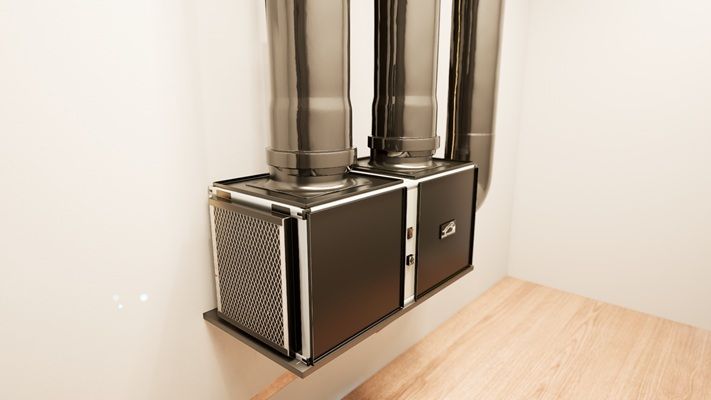

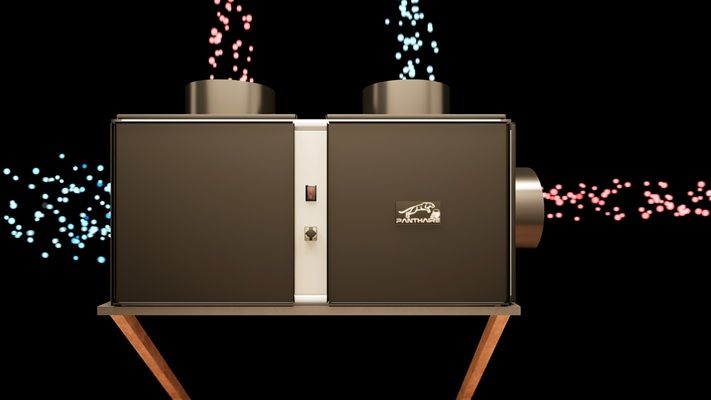

- Fully ducted operation (supply air duct + return air duct)
- Variable-speed ECM fans
- Integrated condensate management with stainless steel drain pan and auto-evaporation module
- Power output adapted to the high thermal loads of glass
Standard glazing allows significant heat gain, especially with direct sunlight or strong internal lighting.Consequences:
- Overload of the wine cellar cooling system
- Unstable temperatures above 55 °F (13 °C)
- Premature compressor wear
- High-performance glazing (triple-pane or vacuum-insulated) to achieve R-5 or higher
- Low-E and UV-protection films to limit solar gain
- Avoid south-/west-facing walls or integrate exterior shading
- Use thermally broken frames
- Pair with a Panthaire APEX 3500 or 5000 to modulate power and prevent overcooling
A glass wine room can require 2 to 4 times more BTUs than a traditional insulated cellar.Recommended solutions:
- Calculate heat load using a tool that factors glazing percentage, exposure, and lighting
- Add a 25–40% capacity margin if glazing exceeds 50% of the surfaces
- Select the right model:
- APEX 3500 — ≤ 900 cu ft (~3,350 BTU/h)
- APEX 5000 — 900–1,200 cu ft (~4,460 BTU/h)
- APEX 7000 — ≤ 2,000 cu ft (~6,350 BTU/h)
Warm air infiltration leads to condensation inside the cellar.Recommended solutions:
- Install a continuous 6 mil polyethylene vapor barrier on the warm side (walls, ceiling, floor)
- Seal tracks and joints with non-off-gassing silicone
- Utilize the integrated drain pan and auto-evaporation system in APEX units
Glass cellars can develop hot spots at the top and lack proper air turnover.Recommended solutions:
- Use a supply air duct and return air duct to ensure 2–4 air changes per hour
- Place the supply near the floor and the return near the ceiling for balanced temperature
- Maintain clearance behind wine racks to allow proper air sweep
- Leverage APEX adaptive airflow to keep vertical temperature differences under 1 °C
Insufficient access complicates maintenance and increases service costs.Recommended solutions:
- Maintain at least 18 in (450 mm) clearance in front of the coil and control panel
- Provide removable or hinged access panels
- Clearly label and position electrical disconnects
Ideal temperature? 54–57 °F (12–14 °C) year-round.
DIY vapor barrier? Professional installation is recommended.
Maintenance frequency? Annually, with filter, coil, and drain pan service.ConclusionTo ensure thermal and humidity stability in your high-end glass wine cellar, adopt a comprehensive approach: performance glazing, precisely sized APEX Panthaire system, professionally installed vapor barrier, balanced airflow, and easy maintenance access.The APEX 3500, 5000, and 7000 are engineered to meet these challenges, delivering silent cooling, an invisible design, and lasting performance.
